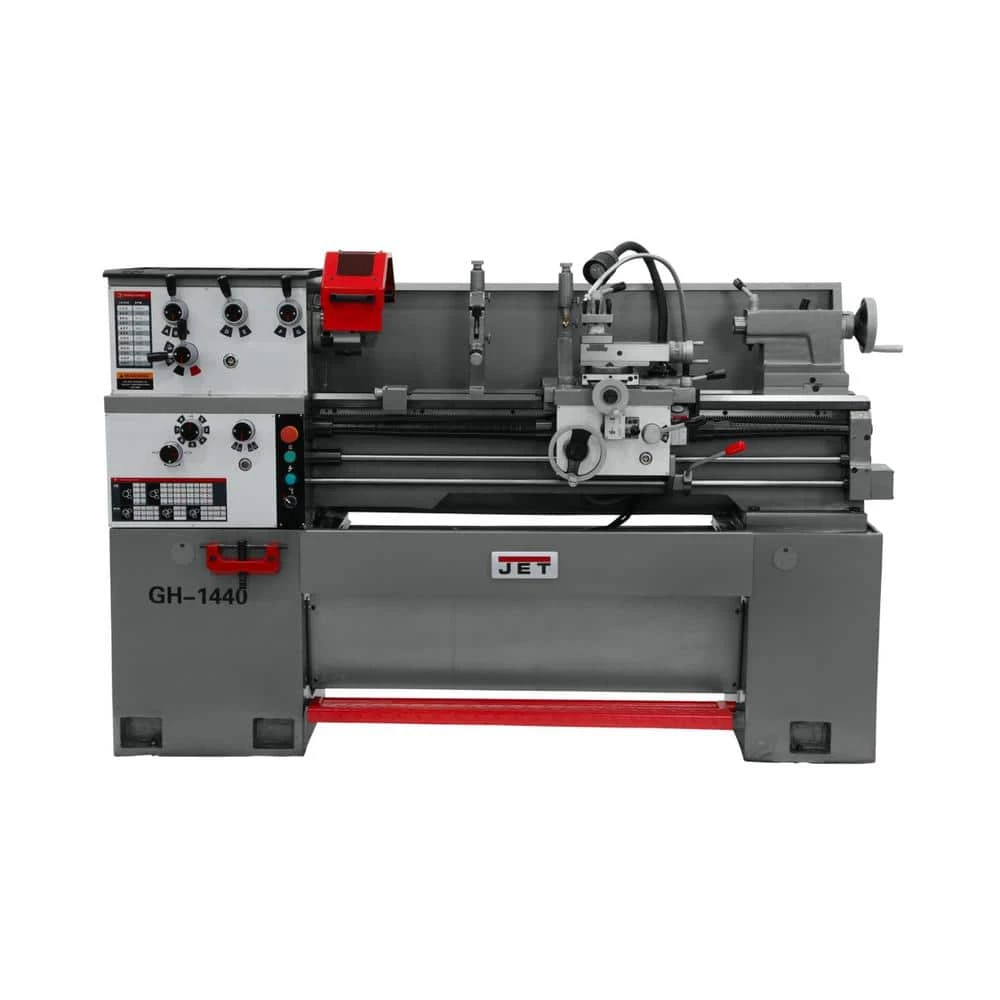

GH-1440-3,14×40 Geared Head Metalworking Lathe 3HP, 230/460-Volt, 3Ph by Jet

Original price was: $595.00.Current price is: $97.99.

Your happiness, our mission.

Nature-friendly materials, for a better planet.

Safe Transactions, Happy Customers

Elevate Your Shopping Experience

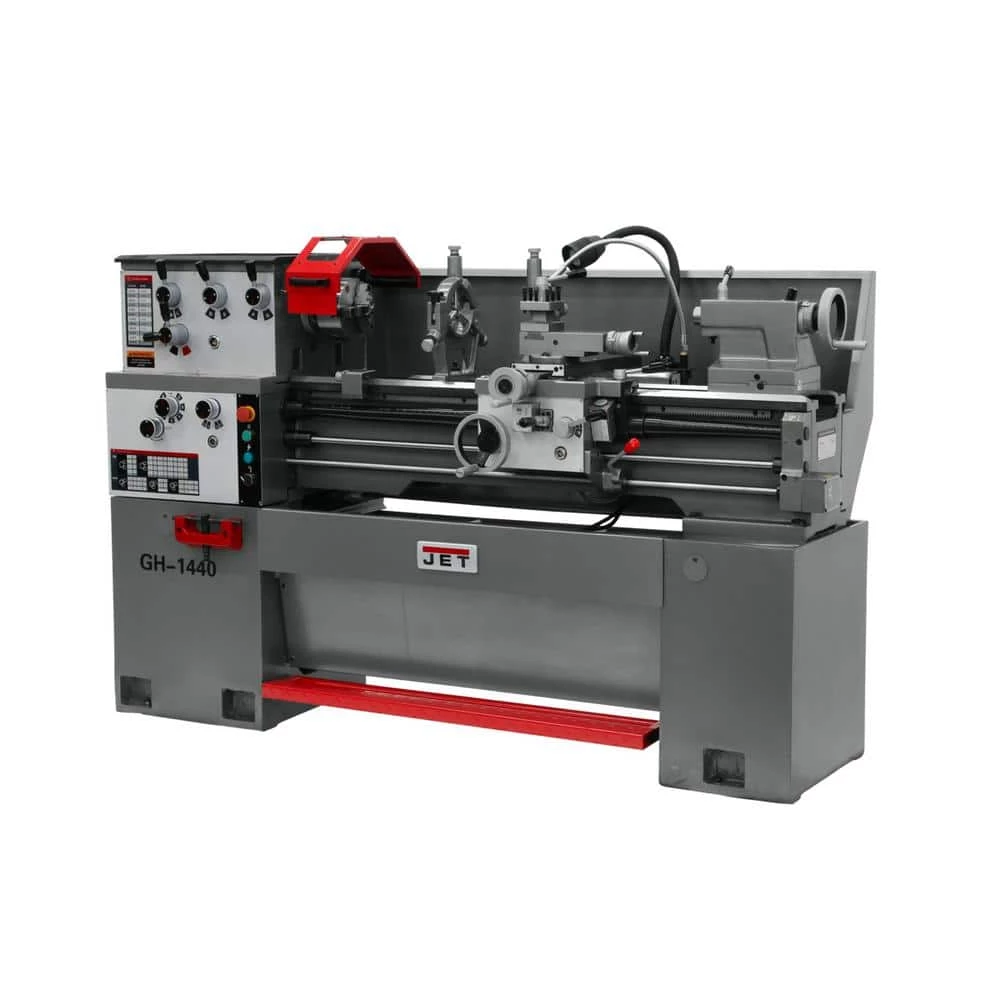

The new Jet GH-1440-1 and GH-1440-3 Geared Head engine lathes weigh over 1 ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

V-way bed design is induction hardened and ground
Splined, not keyed, shafts are utilized
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
Independent leadscrew and feed rod

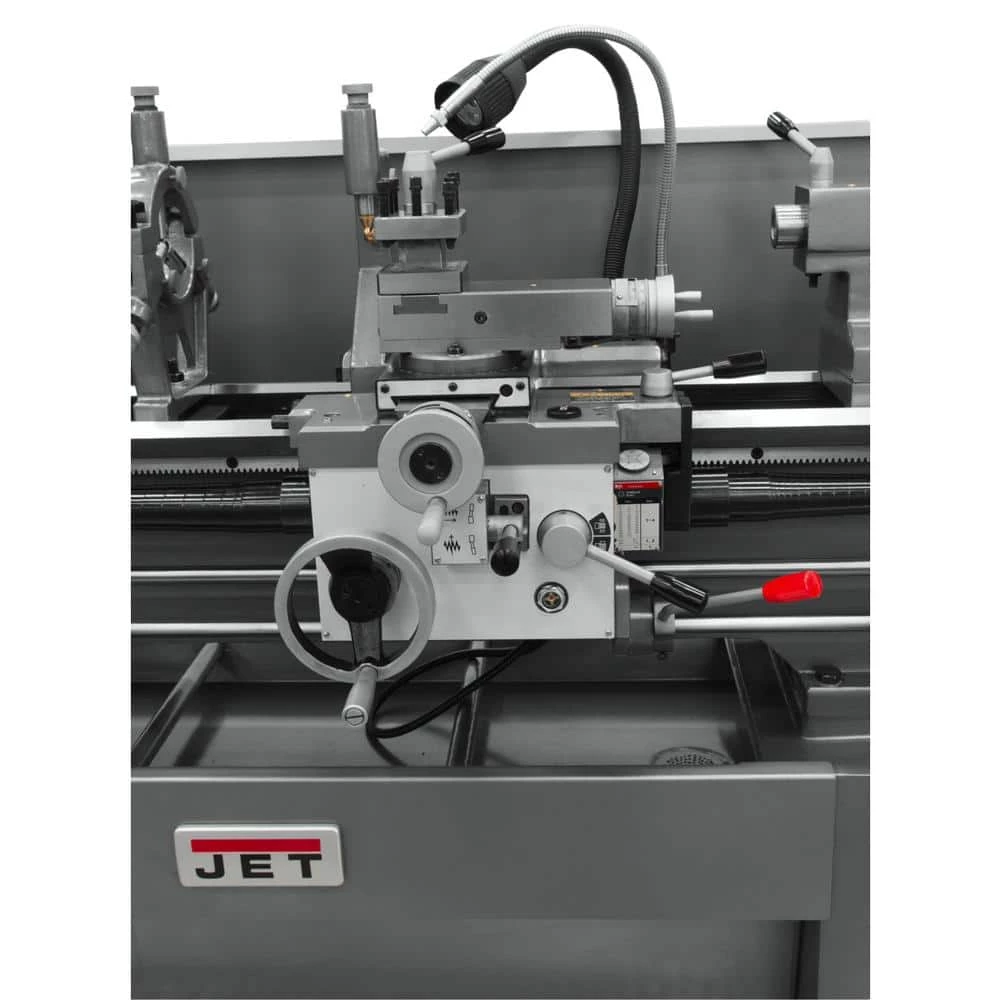

Adjustable gibs are incorporated in the carriage and slideways
Safety on/off switch
Emergency stop within easy reach of the operator

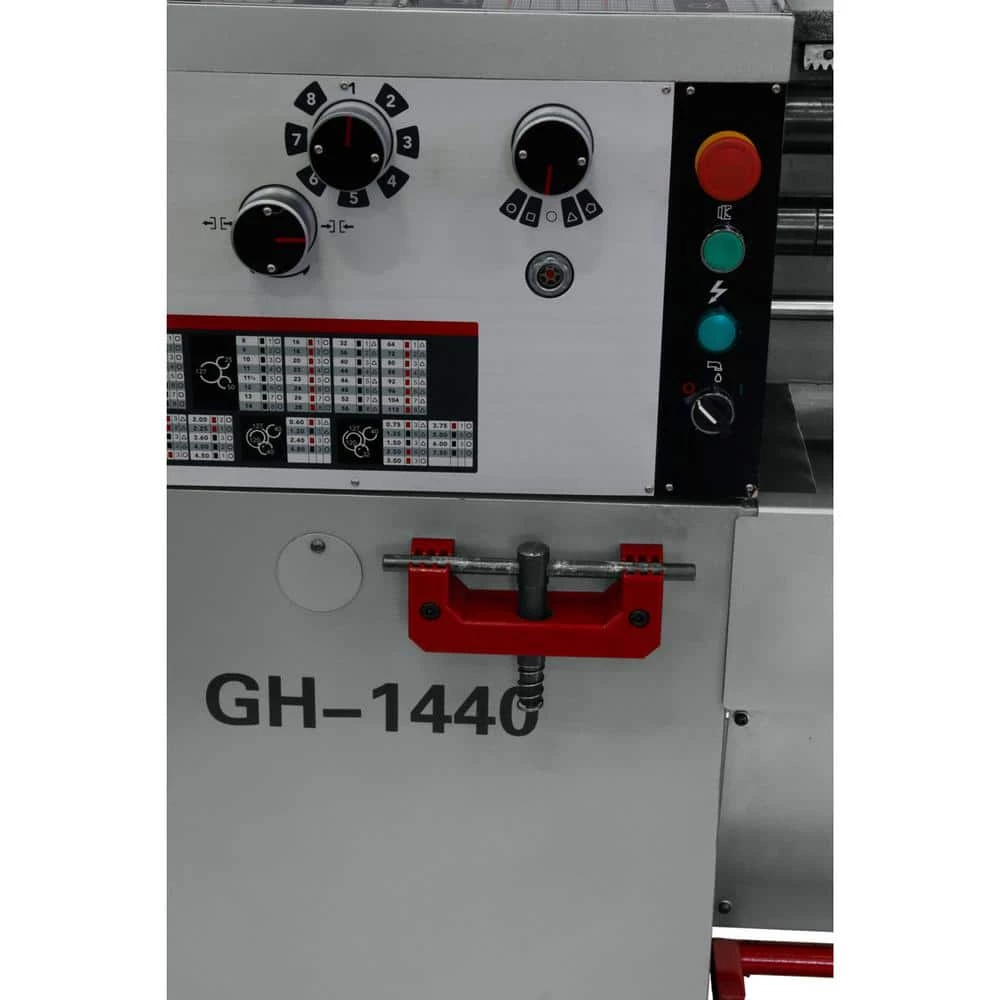

Electronic chuck key docking station
Chuck guard
Foot brake

Bench & Stationary Tool Type	Lathes
Product Weight (lb.)	2116 lb
Product Height (in.)	46 in
Product Depth (in.)	74.8 in
Manufacturer Warranty	2 Year
Certifications and Listings	No Certifications or Listings
Tools Product Type	Power Tool
Swing Distance (In.)	13 in
Returnable	90-Day
Power Tool Features	Chuck Key Storage,Electric Brake,Magnetic,Positive Stops,Worklight
Color Family	Gray
Portability	Floor
Number of Speeds	12
Minimum Speed (rpm)	40
Maximum Speed (RPM)	1800 RPM
Lathe Type	Metal Lathe
Included	No Additional Items Included
Horsepower (HP)	3 hp
Condition	New
Product Width (in.)	28 in
